TinyCircuits TinyTV 2 Miniature TV with Remote

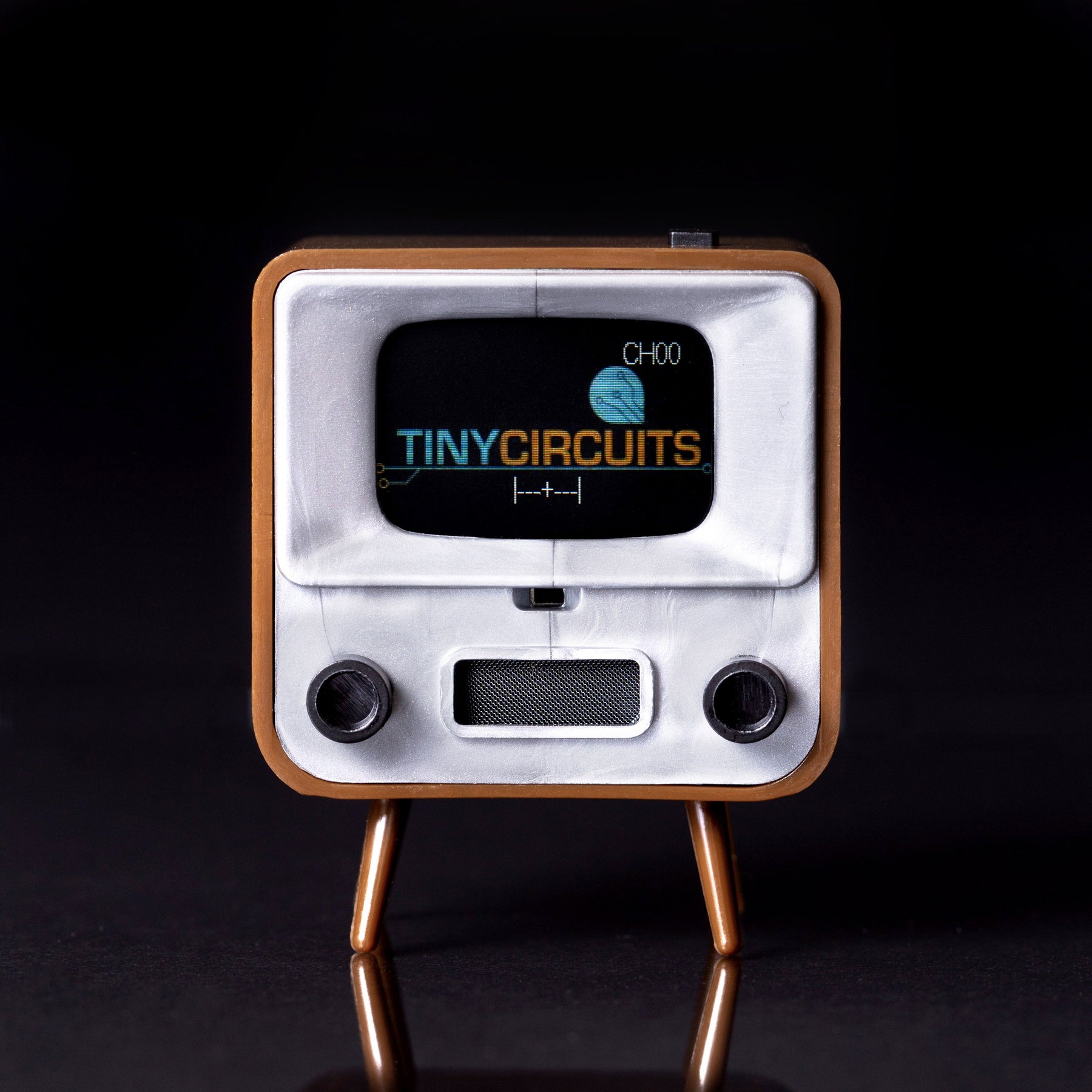

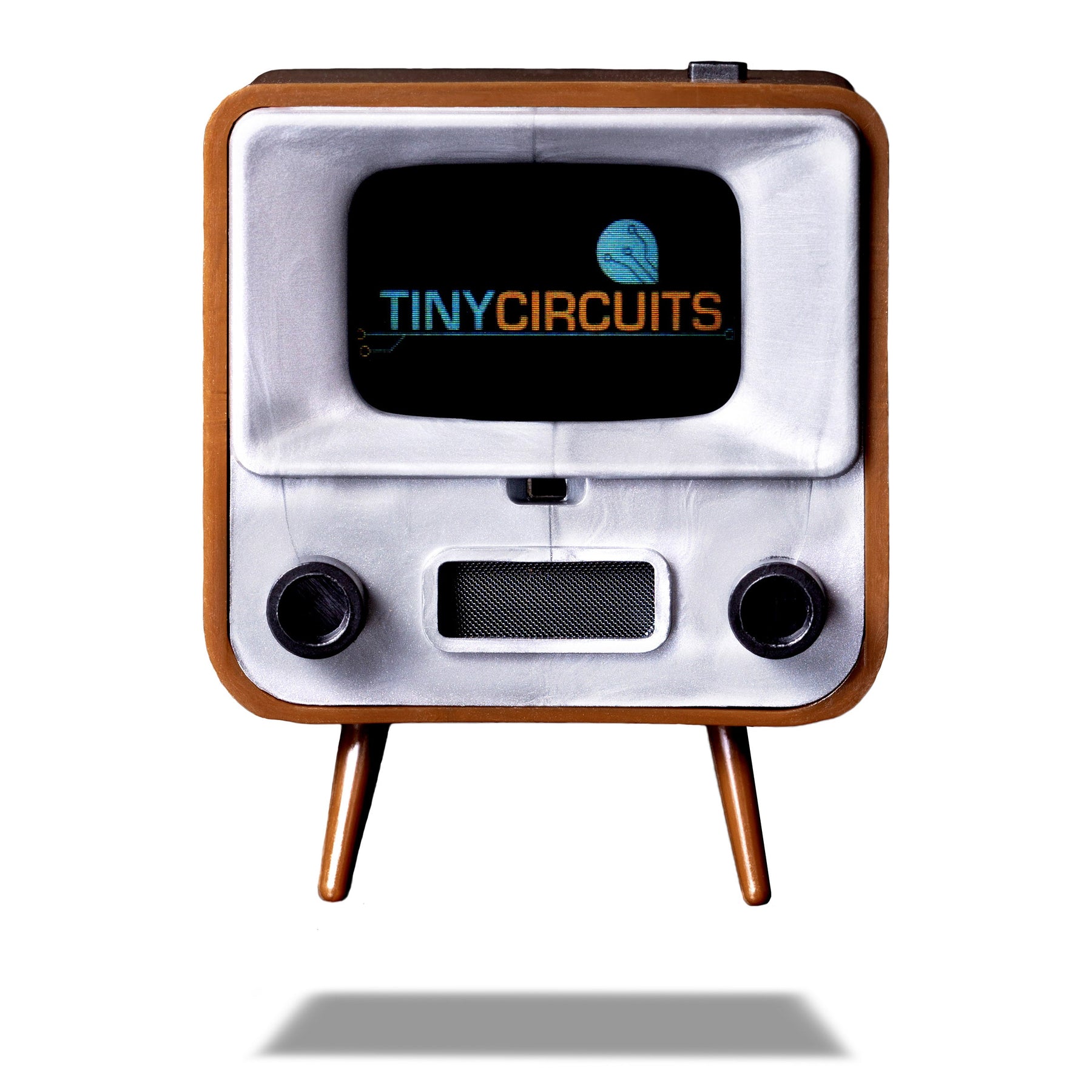

The TinyCircuits TinyTV 2 Miniature TV with Remote turns the familiar silhouette of a retro television into a wonderfully small working video player. Standing just 47.6 mm tall, it brings a little nostalgia to a desk or miniature scene, with a Brown or Clear plastic case and two rotary knobs for channel and volume control.

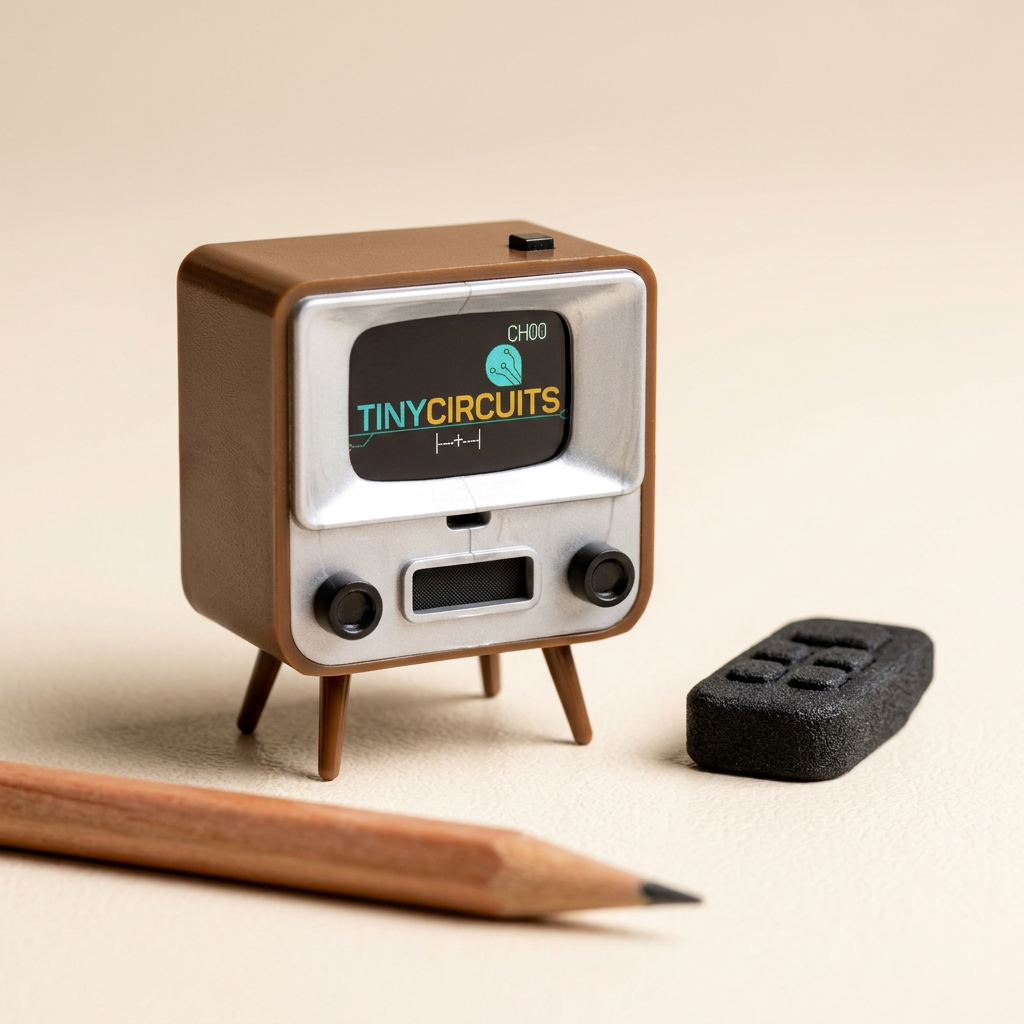

Fully assembled and preloaded with videos, it is ready to explore right out of the box. Settle into a tiny movie moment using the included Tiny Remote, or add your own videos for a miniature collection that feels entirely personal.

Details

• Working miniature video player with a 26 mm (1.0 inches) IPS TFT screen, 216 × 135 pixels and 65K colors.
• Built-in 8GB storage holds approximately 10 hours of video.
• Rechargeable 3.7 V, 150 mAh lithium-polymer battery provides approximately 2 hours of video playback.
• Front-facing 16 × 9 mm speaker.
• Two rotary knobs control channels and volume; power button controls on/off.

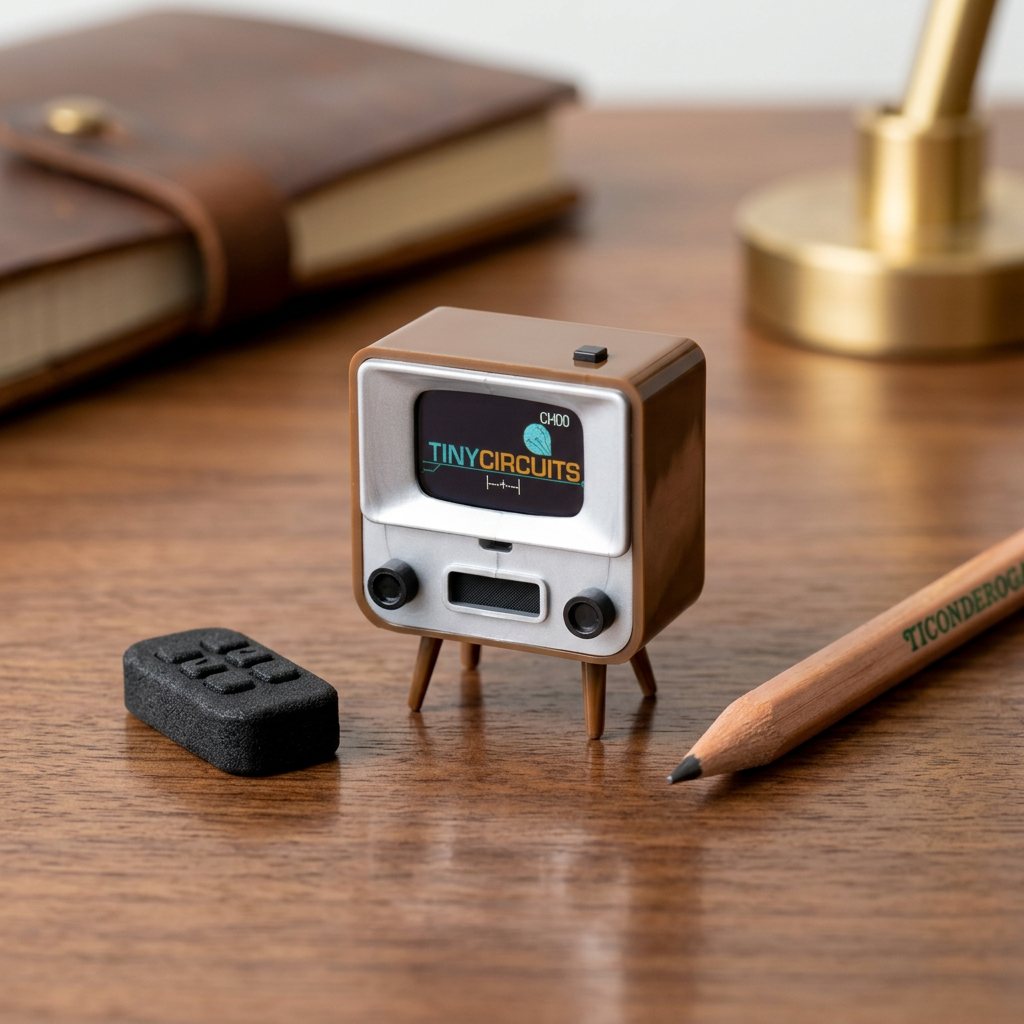

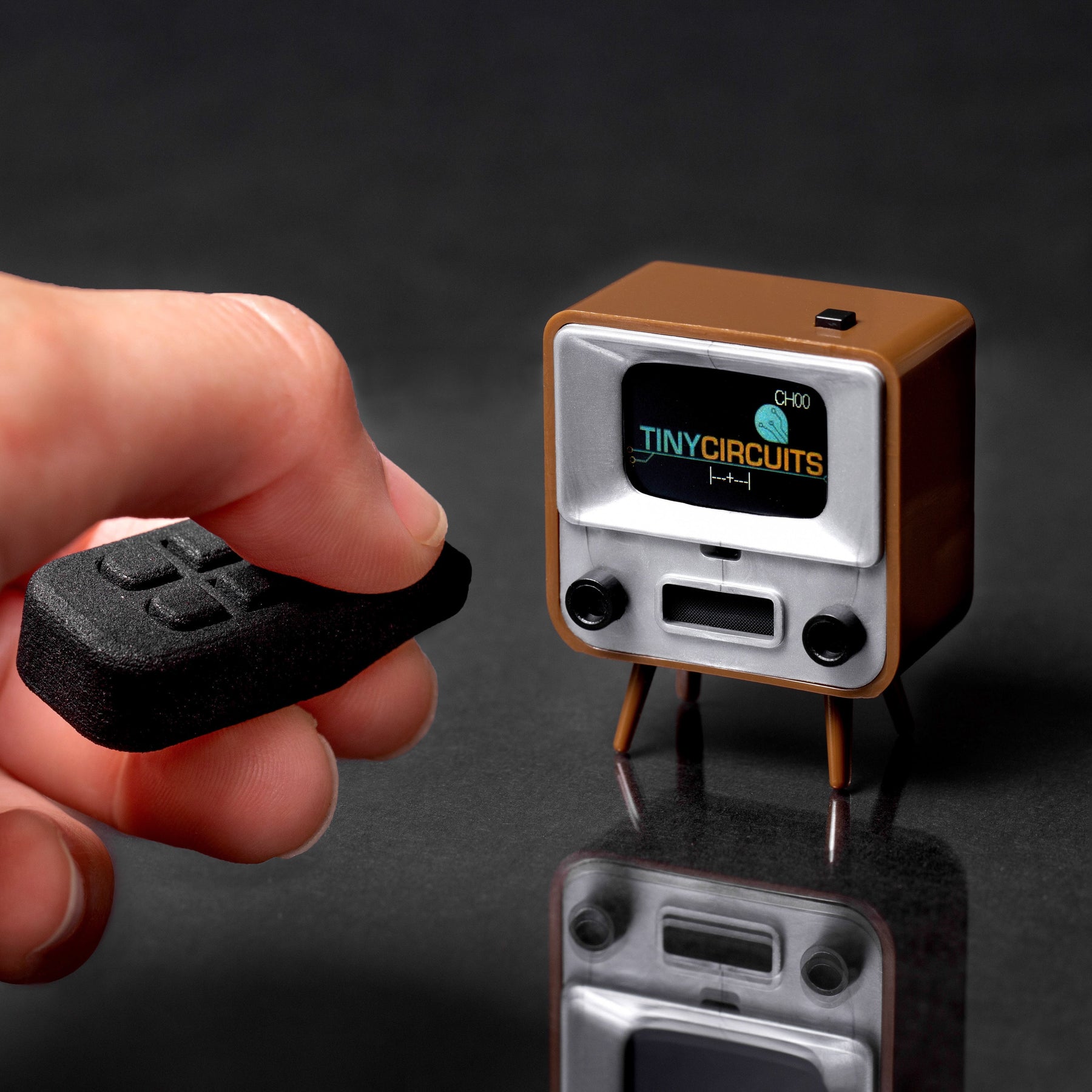

• Includes Tiny Remote infrared remote control. Best operating distance is approximately 12–18 inches, pointed toward the receiver at the top of the TV.
• Raspberry Pi RP2040 processor.

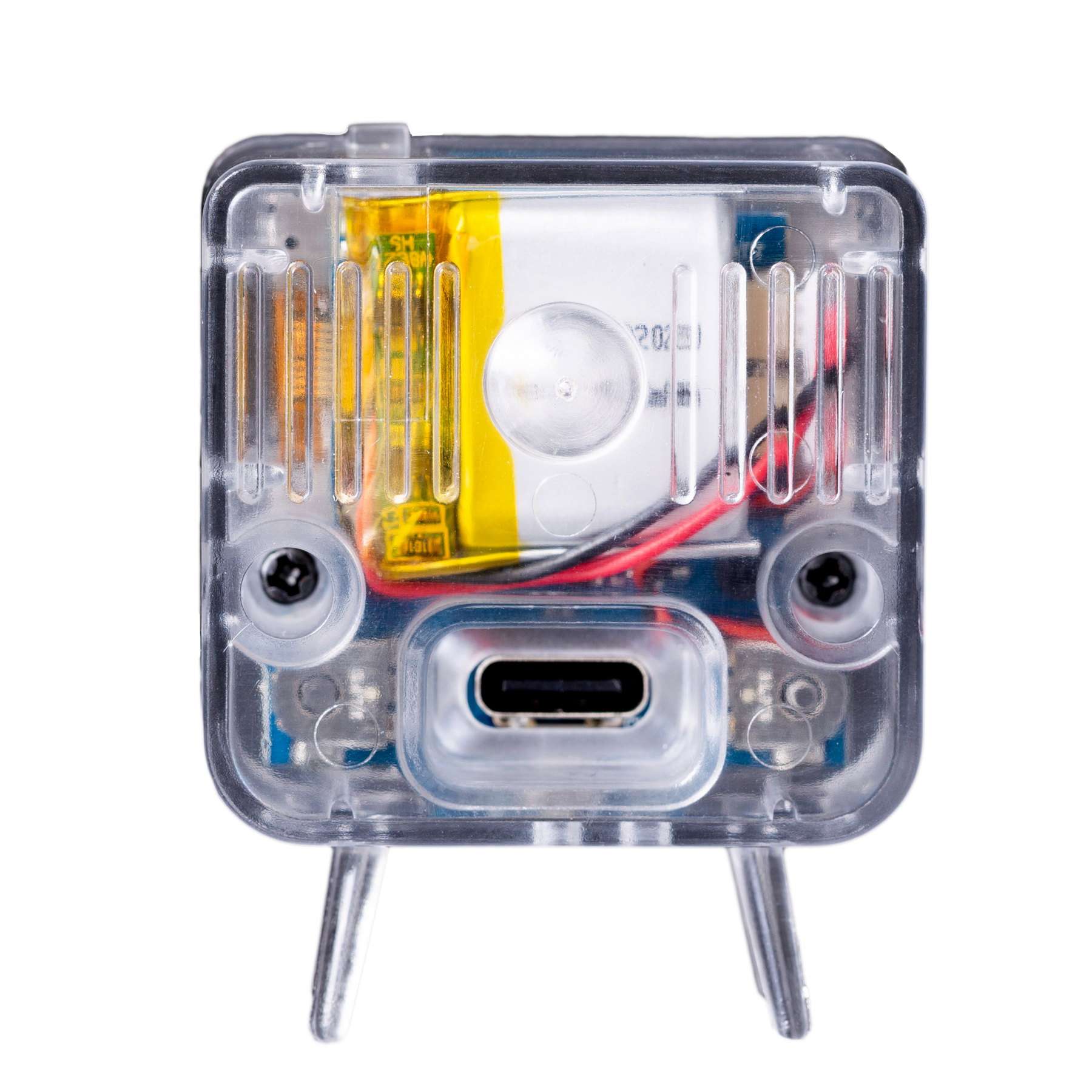

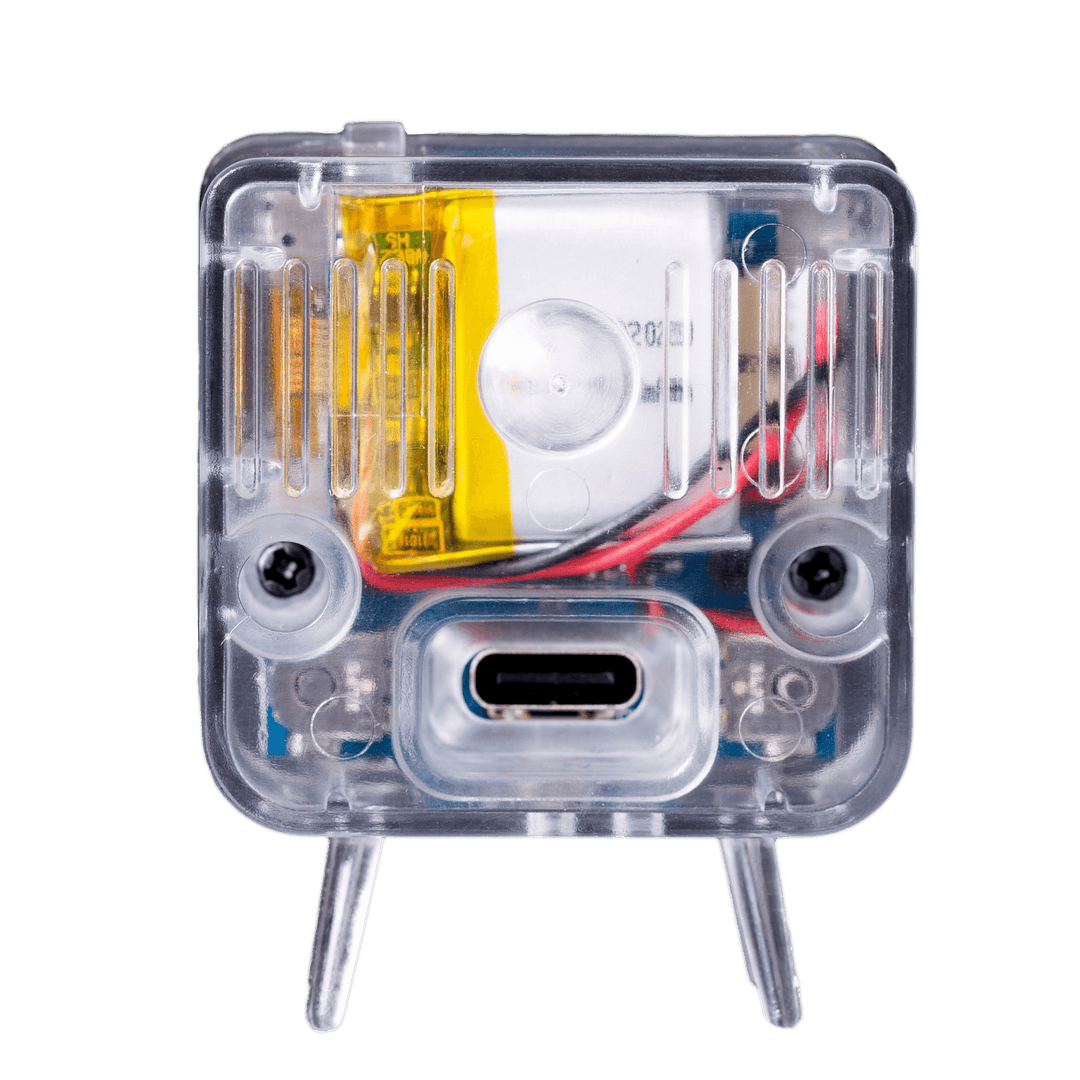

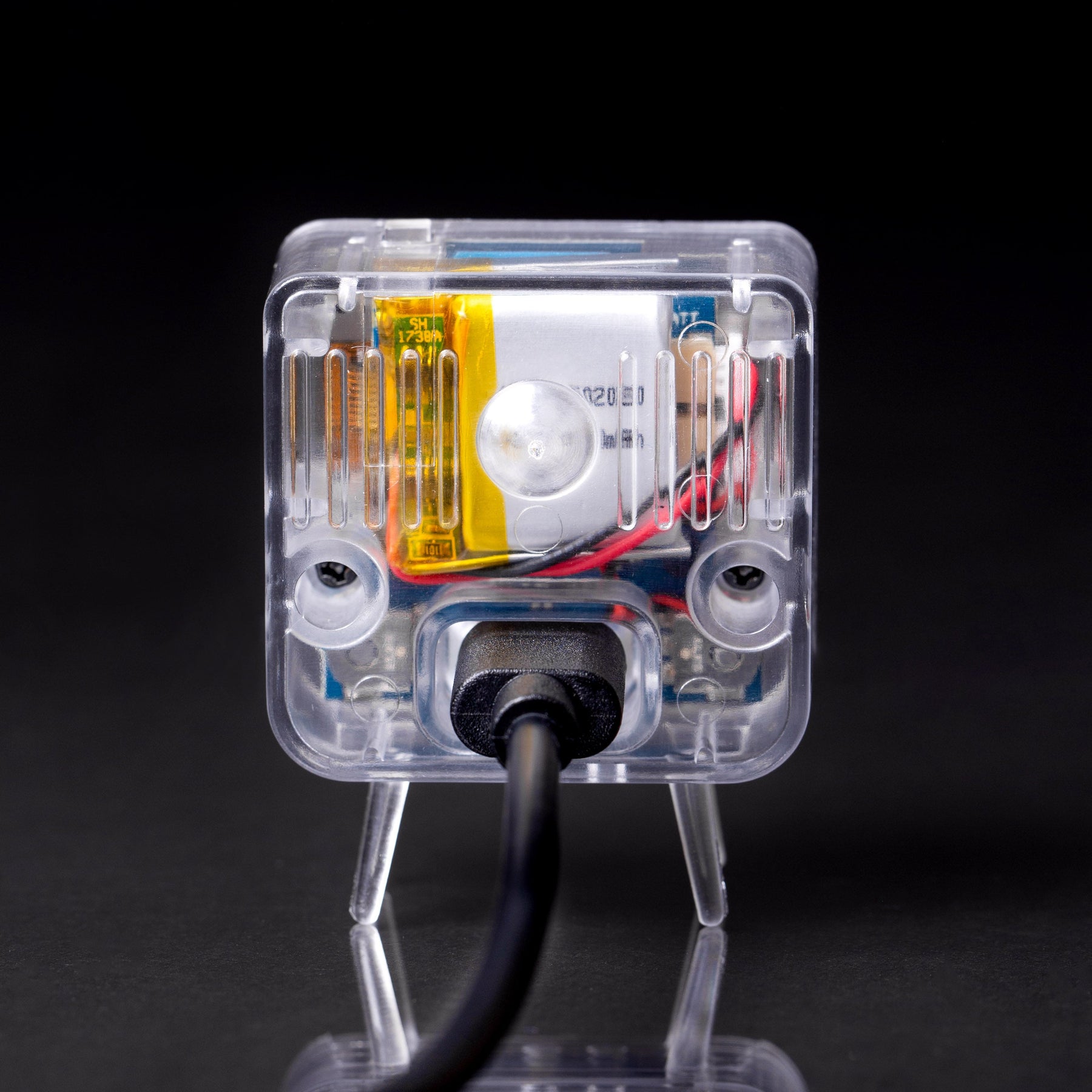

• USB-C connection for uploading videos, charging and streaming video from a connected computer.
• Convert MP4 files with the free TinyTV Converter, then transfer them over USB-C.

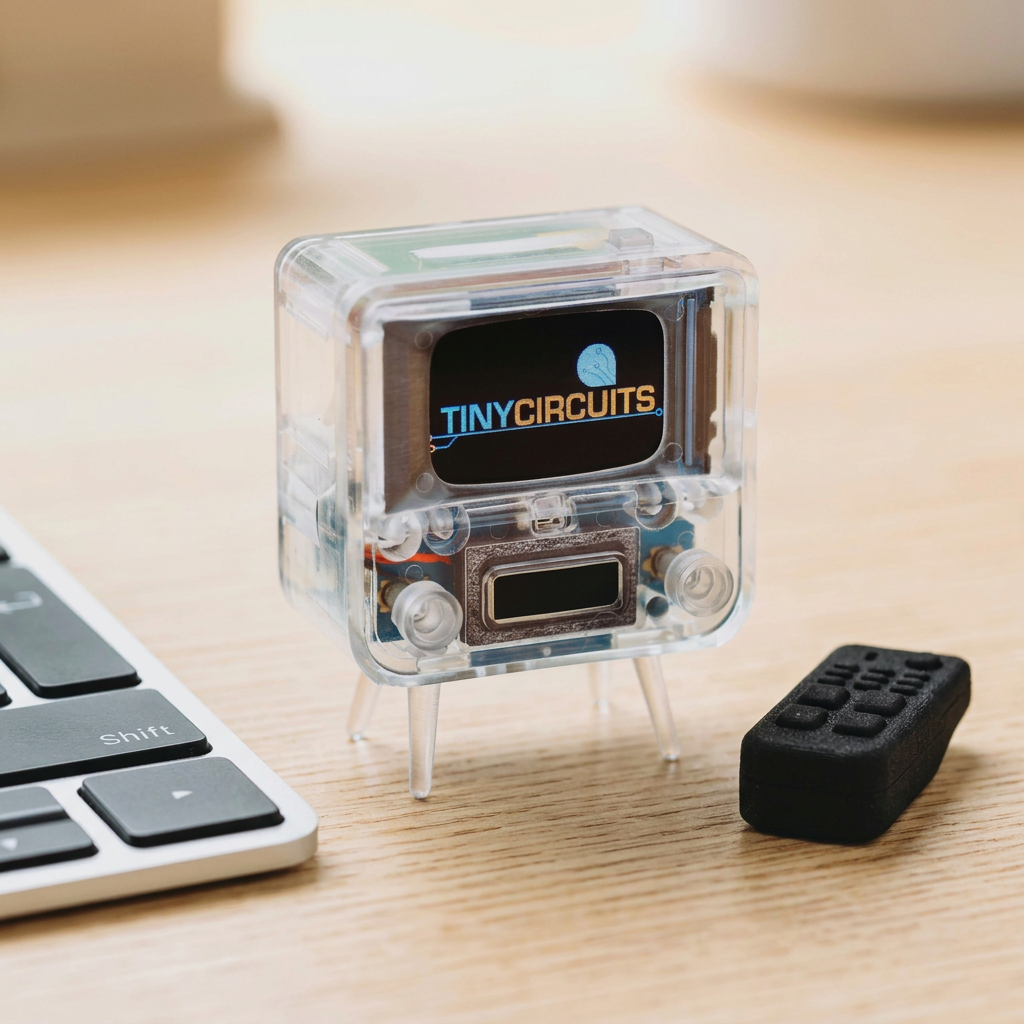

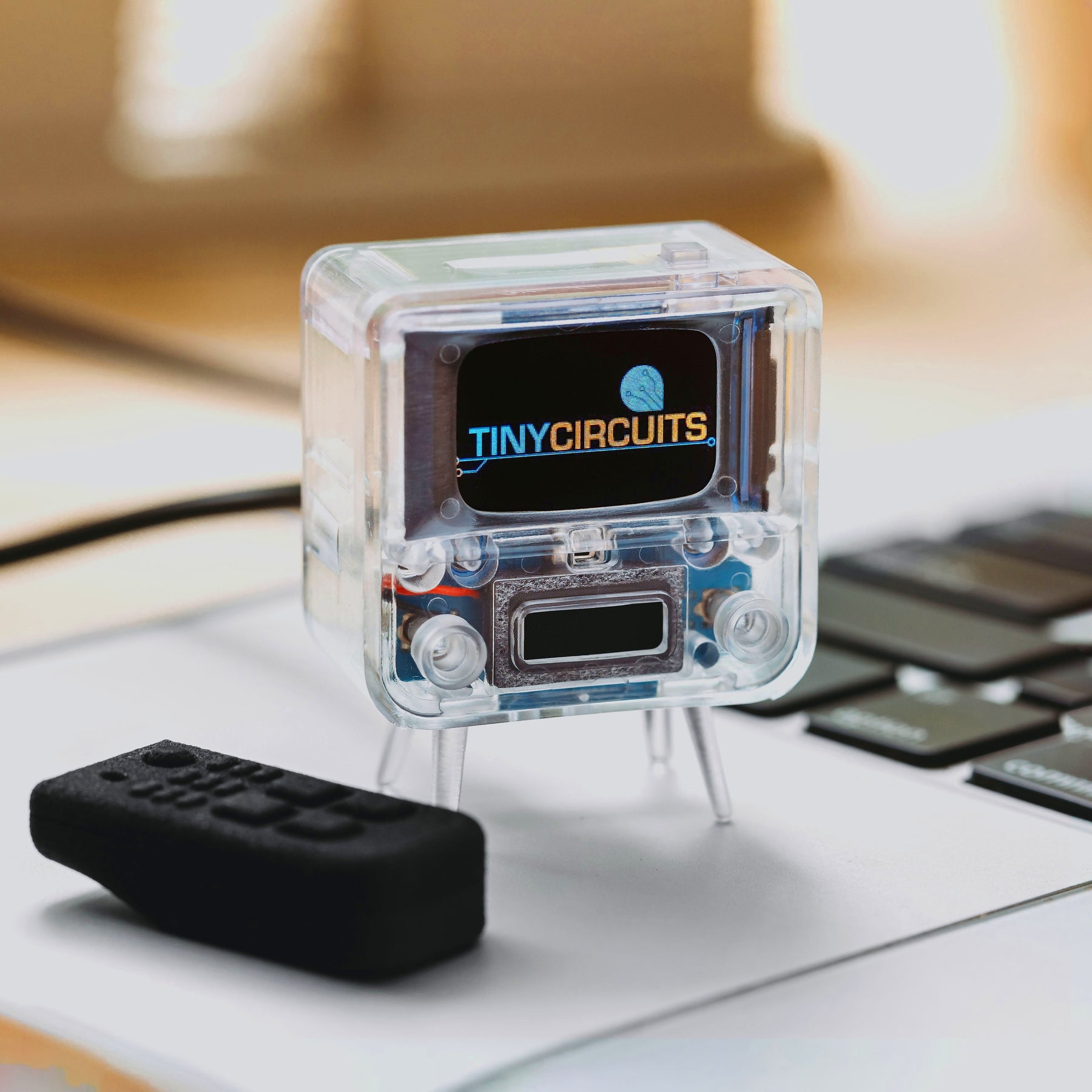

• Available in Brown or Clear plastic.
• Maximum dimensions when facing the screen: 47.6 mm high × 36.6 mm long × 25.9 mm wide, each ± 1 mm.
• Suitable for consideration in 1:12-scale miniature settings; check the measurements for your scene.
• USB-C cable is not included.
• Does not receive over-the-air television or support wireless livestreaming.

Care & Support

Handle the miniature controls gently and follow the manufacturer's instructions for charging and use. For setup help, visit TinyCircuits support or the TinyTV forum.
